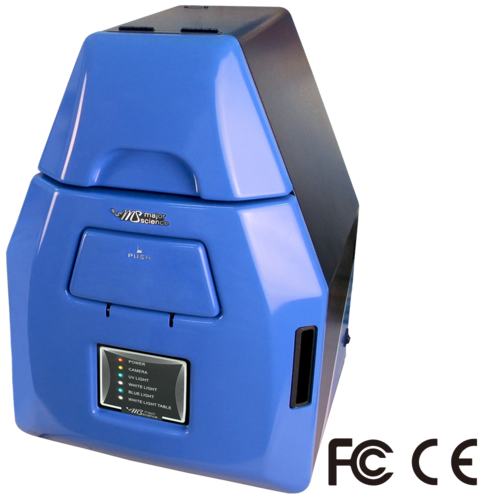

SmartView Pro 1100 Imager System, standard version

SKU
MS/UVCI-1100
Brand
MAJOR SCIENCE
Pre-order (Deliver in 8 to 12 weeks)

• High resolution 5.0 megapixel monochrome camera (UVCI-1100)
• PC integration with real time image
• Capture/Analysis software included
• Pull out UV Transilluminator for easy gel cutting
• Easy installation, ready to use right out of the box
• One touch image capture
• Variety of optional accessories available
• UV safety cut-off switch when door is open
• CE and FCC certification

Login For Price

Major Science Thermostirrers feature leading-edge speed performance and the broadest temperature control range to cover a variety of chemical and biological applications including synthesis of organic compounds, derivatization, drug solubility, protein crystallization and process optimization. Mixing efficiency is maintained uniformly across the sample wells due to independent magnets under each well and thus ensures consistency of experimental results. Furthermore, Major Science designed a remote thermostirrer module for studies that require a thermostatic mixer to function as a part of an automated process such as a polymer viscometers.

Specification

Model SmartView Pro 1100
Cat. No. UVCI-1100
UV Light Built-in drawer type UV Transilluminator 312(302)nm
Camera 1/2.5" 5M Pixel Monochrome sensor
Pixels Size 2.2μmx2.2μm
Lens (Camera) 6mm, F1.2
Camera Video Output 12-bit
Filter (Camera) *Ordered separately Optical EtBr Filter / Optical SYBR Green Filter / Yellow Amber Filter / Orange Amber Filter
Image Storage PC
Software Support Window 10 / 8 / 7 (64bit & 32bit) / XP / Vista
Cabinet Pull out, sliding transilluminator
Field Of View (WxL) Approx. 10.2"x8.3" (260x210mm)
Dimension (WxLxH) Approx. 16.1"x15.9"x22.4" (410x405x570mm)
Weight Approx. 54lbs. (24.5kg)
Display LED indicator light
Viewing Window Built-in UV viewing window
Window Filter Built-in Viewing Window Amber Filter 580nm
Light White light (standard)
Optional Accessory

White Light Plate (power built-in)

Blue light (power built-in) 470nm

Safety CE, FCC
PC Connection USB port
1 D Analysis Software Cat. No. MBE-IMG-SW included
Saved Image BMP/JPEG/PNG/TIFF, 8 bit; PNG/TIFF, 16 bit
Rated Voltage 100-240V~, 50/60Hz, 2A
