SmartView Amber Filter, 580nm (for blue light)
SKU
MS/UVCI-2300-F4
Brand
MAJOR SCIENCE
Pre-order (Deliver in 8 to 12 weeks)

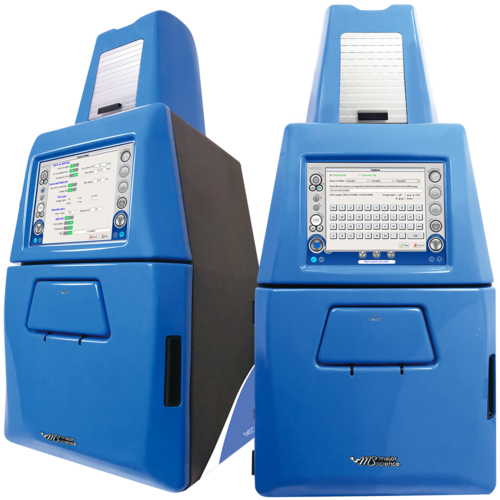

- Standalone gel doc system with high-quality monochrome CCD
- Exchangeable emission Filters provide for instant visualization
- Intuitive 10.4” interface with color touch-screen
- Zoom-able lens for proper picture size
- Movable platform for gel excision with UV-protection shield
- Automatic UV shut off mechanism
- Optional trans white light and blue light plates
Major Science Thermostirrers feature leading-edge speed performance and the broadest temperature control range to cover a variety of chemical and biological applications including synthesis of organic compounds, derivatization, drug solubility, protein crystallization and process optimization. Mixing efficiency is maintained uniformly across the sample wells due to independent magnets under each well and thus ensures consistency of experimental results. Furthermore, Major Science designed a remote thermostirrer module for studies that require a thermostatic mixer to function as a part of an automated process such as a polymer viscometers.
Specification
| Model | SmartView Pro 2300 |
| Cat. No. | UVCI-2300 |
| UV Light | Built-in drawer type UV Transilluminator 312(302)nm |
| Camera | 1/1.8" interline UXGA monochrome progressive 2.0MP CCD |
| Pixels Size | 4.4μmx4.4μm |
| Lens (Camera) | F1.2, 12.5 – 75mm (with one +1 close-up lens), 6X zoom lens, manual |
| Camera Video Output | 12-bit |
| Filter (Camera) *Ordered separately | Optical EtBr Filter / Optical SYBR Green Filter / Yellow Amber Filter / Orange Amber Filter |
| Image Storage | Built-in 14GB Memory (3000 tiff images storage) and USB flash |
| Cabinet | Pull out, sliding transilluminator |
| Field Of View (WxL) | Maximum filed od view 10.2"x8.3" (260x210mm) |
| Dimension (WxLxH) | Approx. 16.1"x16.7"x35.8" (410x425x910mm) |
| Weight | Approx. 54lbs. (24.5kg) |
| Display | LED indicator light |
| Viewing Window | Built-in UV viewing window |
| Window Filter | Built-in Viewing Window Amber Filter 580nm |
| Light Source |
Built-in drawer type UV Transilluminator 312(302)nm build-in LED white light |
| Optional Accessory |
White Light Plate (power built-in) Blue light (power built-in) 470nm |
| Saved Image | Max. 16bit |
| Grayscale | 12bit, 0-4095 gray levels |
| Safety | CE |
| Rated Voltage | 100-240V~, 50/60Hz |
| Brand | MAJOR SCIENCE |
|---|
