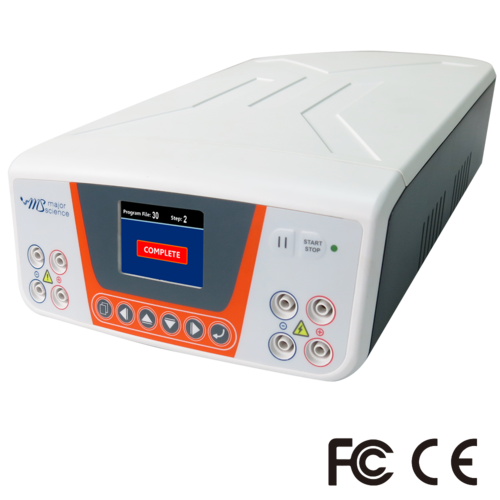

Lively 3AP Power Supply

SKU
MS/MP-320
Brand
MAJOR SCIENCE
Pre-order (Deliver in 8 to 12 weeks)

• Four pairs of output terminals
• 2.4” TFT-LCD colored screen shows all parameters during operation
• Timer with alarm function
• Compact size with stackable case
• Constant voltage/ current/ power operation mode
• Typical running condition helps electrophoresis beginner
• Wide application for DNA, RNA and protein electrophoresis and blotting
• Advanced safety device design
• Universal rated voltage for worldwide distributions

Login For Price

Featuring in small size and versatility, the newly designed Mini Pro 300V Power Supply is ideal choices for any researchers. Capable of providing constant voltage or current in 1V or 1mA increment, the unit is perfectly suitable to run both vertical polyacrylamide or horizontal agarose gel electrophoresis experiments. Continuous or timed operation can be easily set up using the simple and user-friendly interface. Moreover, the upgraded 2 step programmable function is more practical for protein electrophoresis. Mini 300V is feature 2 electrode pairs, allowing 2 gels to be run simultaneously, saving both time and valuable bench space. With an universal voltage rating, Mini Pro 300V is also designed and constructed to the most rigorous safety standards. Package including single or dual horizontal electrophoresis system and mini vertical electrophoresis system are excellent choices for educational or person lab purposes.

Specification

Cat. No. MP-320
Output Voltage / Inc

5 – 300 / 1V

Output Current / Inc 10 – 3,000mA / 10mA
Output Type Constant voltage or constant current
Power 300W
Type of Output 1. Voltage or Current with automatic crossover
2. When target constant mode is set, system automatically adjusts the two other parameter to maximum to allow constant run (later could be changed by user)
Program Storage 30 programmed files
Program Multi-Step Up to 6 steps
Editable Program Function 1.Typical running conditions program
2.Manual editable program
Display 2.4” TFT
Control Microprocessor controller
Safety Device

No Load detect

Leakage detect

Over temperature protection

Over load detection

Sudden load change detection(could be enabled by proper setting)

Shrouded plugs and sockets

Timer Constant: 9999 (min) with alarm/ Continuous
Program: 999 (min) with alarm/ Continuous
Crossover

Yes

Stackable

Yes

Automatic Recovery After Power Failure

Yes

Operating Temperature

4℃~ 40℃

Material

PC housing and flame retardant ABS faceplate

Dimension

Approx. 8.5"x13.2"x4.1" (215 x 335 x 104 mm)

Weight

Approx. 4.6lb (2.1 kg)
