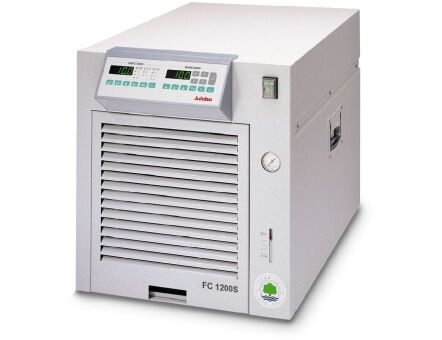

Recirculating coolers of the FC series with an increased pump capacity are available for applications with large volumes. Thanks to their integrated heating, they have an increased working temperature range and operate very precisely with a temperature stability of ±0.2 °C.
Dimensions and volumes
Dimensions
(W × L × H)
46 x 61 x 49 cm
Filling volume
8 ... 11 l
Weight
66 kg
Pump connections
M16x1 male
Barbed fittings inner diameter
8/10 mm
Temperature values
Working temperature range
-15 ... +80 °C
Temperature stability
±0.2 °C
Temperature display resolution
0.1 °C
Ambient temperature
+5 ... +40 °C
Performance values
Heating capacity
1.2 kW
Cooling capacity
Medium: Ethanol
°C
20
10
5
0
-10
kW*
1.2
0.85
0.65
0.56
0.26
Refrigerant
R134a
Global Warming Potential
1430
Filling volume
450 g
Carbon dioxide equivalent
0.644 t
*Â Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20 °C measured with ethanol; over 20 °C with thermal oil unless otherwise specified. Performance specifications apply at an ambient temperature of 20 °C. Performance values may differ with other bath fluids.
