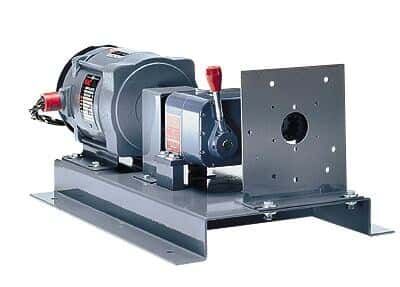

Drive Mflex Hazard-Duty 115V
SKU
CP/MF/AO/P-07583-50
Brand
MASTERFx
Pre-order (Deliver in 8 to 12 weeks)
Pump safely in hazardous
environments
- Use either L/S or I/P pump head on drive
- L/S flow rate 0.6 to 2500 mL/min or I/P flow rate 60 to 8800 mL/min— flow rate depends on drive rpm, pump head, and tubing size
- Fully mechanical speed control—adjust with lever then lock setting
- UL-listed for Class 1, Groups C and D, Division 1 hazardous locations
Specifications & Description
- Pump Series - I/P
- Control Type - Analog Variable Speed
- Min RPM (rpm) - 10
- Max RPM (rpm) - 430
- Speed - Variable
- Speed Control - ±10%
- Max Flow Rate (LPM) - 11.5
- Min Flow Rate (LPM) - 0.06
- Max Flow Rate (mL/min) - 11500
- Min Flow Rate (mL/min) - 60
- Reversible Motor - No
- No. of Pump Heads Accepted - 2
- Type of Pump Heads Accepted - I/P: Standard, Easy-Load, High-Performance; L/S: Standard, Quick Load, Easy-Load, Easy-Load II, High-Performance, Cartridge
- Motor (watts) - 190
- Drive IP rating - IP 21
- Power (VAC) - 115
- Power (amps) - 4.7
- Power (Hz) - 60
- Drive Length (in) - 22.0625
- Drive Width (in) - 13.625
- Drive Height (in) - 8.75
- Drive Length (mm) - 560
- Drive Width (mm) - 346
- Drive Height (mm) - 223
- Open-Head Sensor - No
- Housing Material - Painted Steel
- Motor hp - 1/3
- Description - I/P variable-speed hazardous-duty drive, 10-430 rpm, 115V.
MORE ABOUT THIS ITEM
Choose one of these variable-speed hazardous-duty drives for hazardous locations where special electrical precautions are necessary. Power switch and line cord are not included. Safely connect power using your own protected connections.
Brand | MASTERFx |
---|
