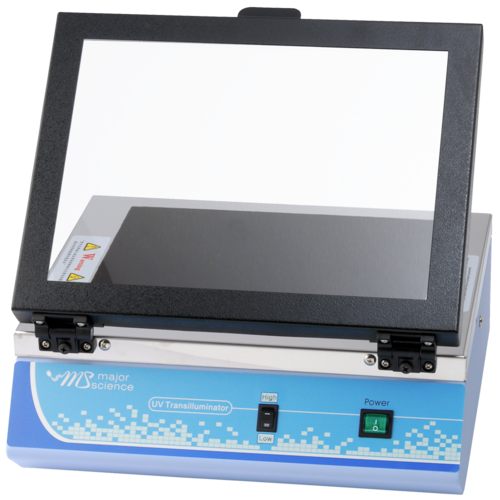

26 x 21cm Transilluminator for 312nm, 110/220V, 6x8W UV light source/unit

SKU
MS/MUV26-312
Brand
MAJOR SCIENCE
Pre-order (Deliver in 8 to 12 weeks)
  • 254nm or 312 (302)nm or 365nm or 254/365nm or 254/312 (302)nm modes available
  • 260x210mm or 210x210mm view dimension
  • High intensity / low intensity switch for single wavelength model
  • Adjustable UV protection cover for better viewing angle efficiency
  • High performance models available
  • Long lifetime Filter



Login For Price

The bench-top UV Transilluminator series offers the researcher uniform and intense sources of ultraviolet light (radiation) with a compact footprint. Their special design emits either one or dual intensity excitation UV wavelengths for back-illumination of transparent fluorescent materials. 254nm, 312 (302)nm, 365nm, 254 & 365nm, and 254 & 312 (302)nm modes are available for different applications. There are two choices of filter size viewing dimensions, 260x210mm and 210x210mm for different user requirements. The 365nm mode is offered for easy view of gels under long wave for extended periods of time avoiding photo nicking damage. The 254nnm mode is used to irradiate samples. The 312 (302)nm mode is suggested for general gel operating. The single wavelength modes have a high intensity / low intensity switch equipped. All bench-top transilluminator modes are compact, lightweight and economical.

A high performance model, 312 (302)nm UV Transilluminator with a strong lighting and longer life time tubes, was introduced for demanding requirements

Specification

Cat. No. MUV26 series
Wavelength 254 / 312 (302) / 365nm
Filter Size Approx. 10.2"x8.3" (260x210mm)
Light Source 6 tubes, 8W/tube
Filter

Long life filter

High efficiency reflector

Intensity Switch High (100%)/Low (70%) intensity switch for single wavelength mode
Fast Start Up High quality starter to simultaneously illuminate tubes when switched on and no blink
Number Of Peristaltic Pumps 1 (Max is 2, the second pump head is optional and need the confirm before order.)
UV Resistant Plastic Cover (WxL) Approx. 13"x9.8" (330x250mm)
Dimension (WxLxH) Approx. 13.4"x11.6"x3.9" (340x295x100mm)
Material Painted iron metal
Weight Approx. 16.5lb (7.5kg)
Rated Voltage

110V/220V~
