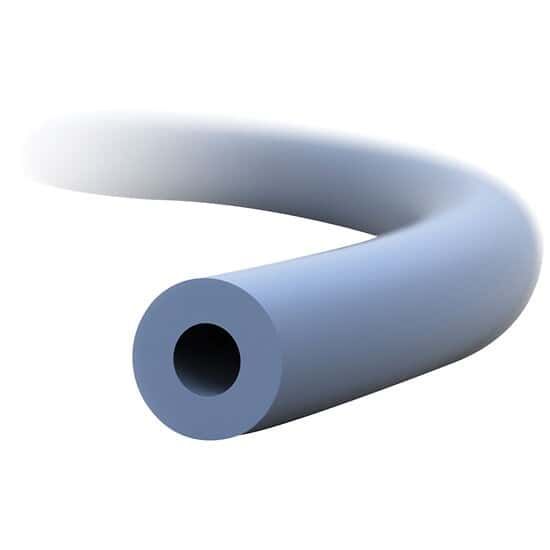

Tubing 1/16inOD X .01inID 5Ft/pk

An excellent replacement for stainless steel tubing

Flexible PEEK tubing is biocompatible and chemically inert
Easily cut to desired lengths
Smooth internal surface decreases turbulence
Color-coded for easier identification
Blue
1/16" OD x 0.010" ID

MORE ABOUT THIS ITEM

Applications:Â Chromatography
Characteristics:Â Unlike stainless steel, PEEK (polyetheretherketone) tubing is flexible and easy to cut. It provides excellent chemical resistance to both organic and inorganic solvents. Tubing withstands pressures to 5000 psi (3000 psi for model 02006-30). PEEK tubing has a very smooth internal surface, which causes less turbulence than metal tubing and improves resolution. Pack of 5-ft.
Certification:Â None
Maximum temperature:Â 212Â°F (100°C)
Sterilize:Â With autoclave, ethylene oxide, or gamma irradiation

Specifications & Description

Tubing Formulation: PEEK
Tubing OD (in): 1/16
Tubing OD (mm): 1.6
Tubing ID (in): 1/100
Tubing ID (mm): 0.25
Wall Thickness (in): 1/500
Wall Thickness (mm): 0.066675
Color: Blue
Clarity (opaque): Yes
Working Pressure (PSI): 5000
Max Pressure (PSI): 7000
Max Pressure (bar): 483
Max Temperature (
° F
): 212
Max Temperature (
° C
): 100
Length per Pack (ft): 5
Length (ft): 5
Length per Pack (m): 1.5
Length (m): 1.5
Sterilization Method: Gamma;Autoclave;EtO
Sterilization Method (Autoclave): Yes
Sterilization Method (EtO): Yes
Sterilization Method (Gamma): Yes
Description: Chromatography Tubing, Blue PEEK, 1/16" OD x .010" ID x 5 ft L; 1/EA
