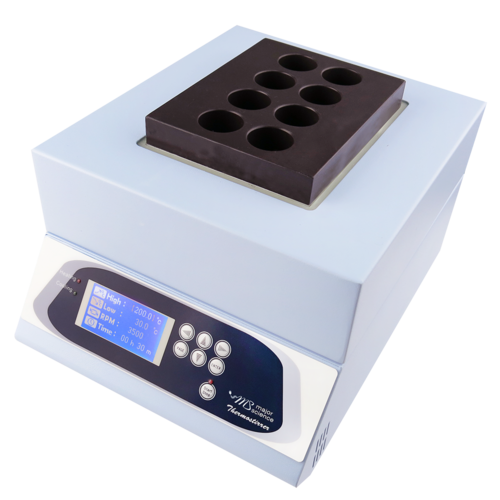

Thermostirrer 8 wells, 220V

SKU
MS/TS-8W-220
Brand
MAJOR SCIENCE
Pre-order (Deliver in 8 to 12 weeks)
  • Microprocessor control with digital performance
  • Brushless motor for individual well agitation
  • Outstanding temp. control performance up to 200°C
  • User temperature calibration
  • Customization available
  • Well-insulation around casework
  • Over temperature protection
  • LCD screen & timer (standalone model only)



Login For Price

Major Science Thermostirrers feature leading-edge speed performance and the broadest temperature control range to cover a variety of chemical and biological applications including synthesis of organic compounds, derivatization, drug solubility, protein crystallization and process optimization. Mixing efficiency is maintained uniformly across the sample wells due to independent magnets under each well and thus ensures consistency of experimental results. Furthermore, Major Science designed a remote thermostirrer module for studies that require a thermostatic mixer to function as a part of an automated process such as a polymer viscometers.

Specification

Cat. No. TS-8W-220
Controller Digital microprocessor controller
Display 2.6” LCD monochrome display
Light Source 6 tubes, 8W/tube
Motor

Brushless motor

Number of position 8 wells (2x4) with individual magnetic stirrer or customized
Temperature control range 5°C above ambient to 200°C
Temperature increment ± 0.1°C
Temperature uniformity ± 0.7°C @ 150°C
Dimension (WxLxH) Approx. 13.4"x11.6"x3.9" (340x295x100mm)
Temperature accuracy ± 0.2°C @ 150°C
Temperature calibration Yes
Operating temperature

Ambient to 40°C

Timer

99 (hr): 59 (min) / Continuous

Block material

PTFE coating with individual magnetic

Data logging

RS 232 (Max. 2.5meter long)

Safety

Insulated wells around casework

Leakage proof for heating chamber

Over Temperature protection

Rated voltage

220V~; 50/60Hz, 3.15A

Dimension (WxLxH)

Approx. 9.1"x11.8"x6.3" (230x300x160mm)

Weight

Approx. 18.7lb (8.5kg)

Power

600W

Vessel diameter

Max. 28.5mm or customized

Communication port

RS-232

More Information
Brand MAJOR SCIENCE
