Thermostirrer 8 wells, 110V

Skip to the beginning of the images gallery

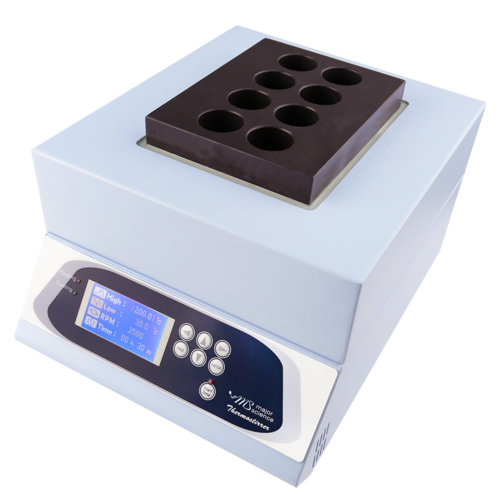

Thermostirrer 8 wells, 110V

MAJOR SCIENCE

Be the first to review this product

SKU

MS/TS-8W-110

Brand

MAJOR SCIENCE

Pre-order (Deliver in 8 to 12 weeks)

Microprocessor control with digital performance
Brushless motor for individual well agitation
Outstanding temp. control performance up to 200°C
User temperature calibration
Customization available
Well-insulation around casework
Over temperature protection
LCD screen & timer (standalone model only)
Highest stirring speed, 3500 rpm in the market

Details

Major Science Thermostirrers feature leading-edge speed performance and the broadest temperature control range to cover a variety of chemical and biological applications including synthesis of organic compounds, derivatization, drug solubility, protein crystallization and process optimization. Mixing efficiency is maintained uniformly across the sample wells due to independent magnets under each well and thus ensures consistency of experimental results. Furthermore, Major Science designed a remote thermostirrer module for studies that require a thermostatic mixer to function as a part of an automated process such as a polymer viscometers.

Specification

Cat. No.	TS-8W-110
Controller	Digital microprocessor controller
Display	2.6” LCD monochrome display
Light Source	6 tubes, 8W/tube
Motor	Brushless motor
Number of position	8 wells (2x4) with individual magnetic stirrer or customized
Temperature control range	5°C above ambient to 200°C
Temperature increment	± 0.1°C
Temperature uniformity	± 0.7°C @ 150°C
Dimension (WxLxH)	Approx. 13.4"x11.6"x3.9" (340x295x100mm)
Temperature accuracy	± 0.2°C @ 150°C
Temperature calibration	Yes
Operating temperature	Ambient to 40°C
Timer	99 (hr): 59 (min) / Continuous
Block material	PTFE coating with individual magnetic
Data logging	RS 232 (Max. 2.5meter long)
Safety	Insulated wells around casework Leakage proof for heating chamber Over Temperature protection
Rated voltage	110V~; 50/60Hz, 6.3A
Dimension (WxLxH)	Approx. 9.1"x11.8"x6.3" (230x300x160mm)
Weight	Approx. 18.7lb (8.5kg)
Power	600W
Vessel diameter	Max. 28.5mm or customized
Communication port	RS-232
