Straight-Blade impeller BR 11
SKU
HD/509-11000-00
Brand
HEIDOLPH
Pre-order (Deliver in 8 to 12 weeks)

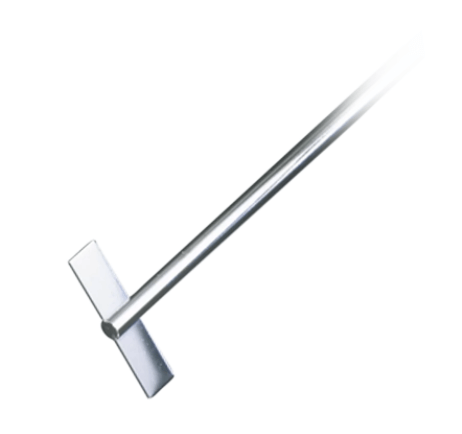

BR 11 Straight-Blade Impeller
P/N:Â 509-11000-00
Due to its blade dimensions, the straight-blade impeller BR 11 is ideally suited for solutions, emulsions and suspensions in vessels with the following characteristics:
- ideal vessel diameter: 100 mm
- ideal ground clearance: 5 mm
- ideal filling level: 100 mm
- ideal volume: 800 ml
The straight-blade impeller BR 11 has a total length of 400 mm and is made of stainless steel. Its stirring shaft has a diameter of 8 mm.
BR 11 Straight-Blade Impeller - Technical Data
| Blade size | 50 x 12 mm |
|---|---|
| Length | 400 mm |
| Material | stainless steel V4A |
| Shaft diameter | 8 mm |
| Max. rotation speed | 2,000 rpm |
| Brand | HEIDOLPH |
|---|
