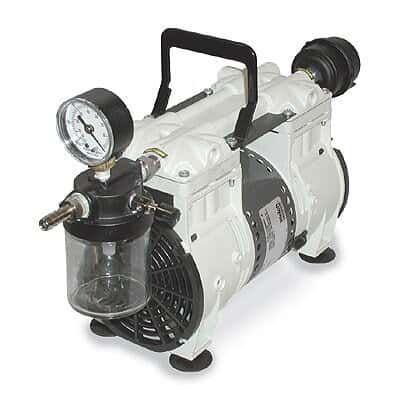

Pump Piston Vacuum 3.0CFM 220V

SKU
CP/PU/O/P-79204-35
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)
Login For Price

INCLUDES
Muffler, water trap, regulators, gauges, carrying handle, suction cup feet, on/off switch, two ¼- barbed fittings, and a 6-ft cord (the 115 VAC models come with a standard U.S. plug; 230 VAC models come with a European plug).

KEY FEATURES
Ideal for filtering, aspirating, degassing, and desiccating
Pumps do not require water or oil to operate–low maintenance
Water trap prevents liquid from being drawn into the pump
Muffler provides quiet operation
Effective for use in automated systems
Compact, lightweight, portable

MORE ABOUT THIS ITEM
Service kits include: Connecting rod assembly, two handle screws, four head screws, O-ring head and cylinder, valve plate assembly, plastic jar, filter element, ball, and gasket.

Note: Avoid using pump with organic, acidic, or basic vapors.

Specifications & Description
Head Configuration - Dual Heads
Wetted Parts - 304 Stainless Steel, Aluminum, PTFE
Free-Air Capacity (CFM) -  1.8
Free-Air Capacity (LPM) -  51
Free-Air Capacity (LPH) -  3060
Max Flow Rate (CFM) -  1.75
Max Flow Rate (Liters/min) -  50
Max Vacuum (in Hg) -  29.8
Max Vacuum (mbar) -  4
Max Vacuum (mm Hg) -  3
Max Vacuum (torr) - 3
Noise Level (dB) - 58
Port Size - 3/8" hose barb
Max Temperature (

° F

) -  104
Max Temperature (

° C

) - 40
Duty Cycle - Continuous
Power (VAC) - 230
Power (amps) - 3.3
Power (Hz) - 50
Motor Type - Permanent split capacitor
Height (in) - 9.1
Length (in) - 11.1
Height (cm) - 23.11
Length (cm) - 28.19
Height (mm) - 231.1
Length (mm) - 281.9
Motor hp - 1/3
Description - Standard Duty Dry Vacuum Piston Pumps, 50 L/min, 230 VAC
