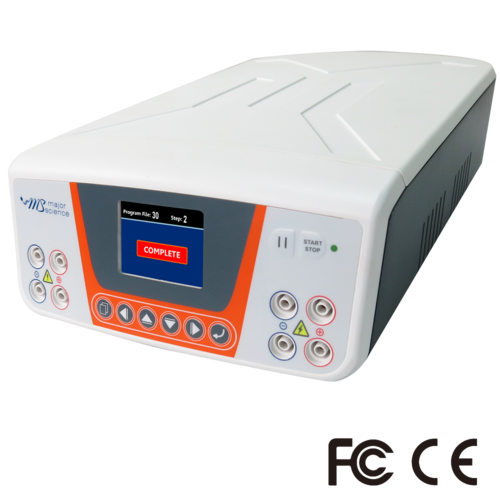

MP-510 Power Supply (Lively 500V), unit

Details

Major Science offers 3 models of power supplies constructed with microprocessor controller and 4 pairs of outlet terminals which covers the broadest range of application in general laboratory. The microprocessor control can perform either continuous or timed output, and user is able to pause and resume anytime without resetting the timer.

MS Lively Power Supply is power enough to perform horizontal and vertical electrophoresis as well as two dimensional electrophoresis SDS-PAGE applications. In addition, it can operate with a fully programmable mode and offer up to 6 multi-step setting conditions. The 2.4” TFT-LCD colored screen also allows you to see all the running/setting conditions while operating. For those beginners in electrophoresis, the built-in data for some typical running condition could be extremely helpful. All 3 models are designed with great safety features to ensure safety of the lab and experiment.

Specification

Cat. No.	MP-510
Output Voltage / Inc	5 – 500 / 1V
Output Current / Inc	1 – 800mA / 10mA
Power	300W
Rated Voltage	100-240V~: 47-60Hz
Type of Output	1. Voltage or Current with automatic crossover 2. When target constant mode is set, system automatically adjusts the two other parameter to maximum to allow constant run (later could be changed by user)
Program Storage	30 programmed files
Program Multi-Step	Up to 6 steps
Editable Program Function	1.Typical running conditions program 2.Manual editable program
Display	2.4” TFT
Control	Microprocessor controller
Safety Device	No Load detect Leakage detect Over temperature protection Over load detection Sudden load change detection(could be enabled by proper setting) Shrouded plugs and sockets
Timer	Constant: 9999 (min) with alarm/ Continuous Program: 999 (min) with alarm/ Continuous
Crossover	Yes
Stackable	Yes
Automatic Recovery After Power Failure	Yes
Operating Temperature	4℃~ 40℃
Material	PC housing and flame retardant ABS faceplate
Dimension	Approx. 8.5"x13.2"x4.1" (215 x 335 x 104 mm)
Weight	Approx. 4.6lb (2.1 kg)
