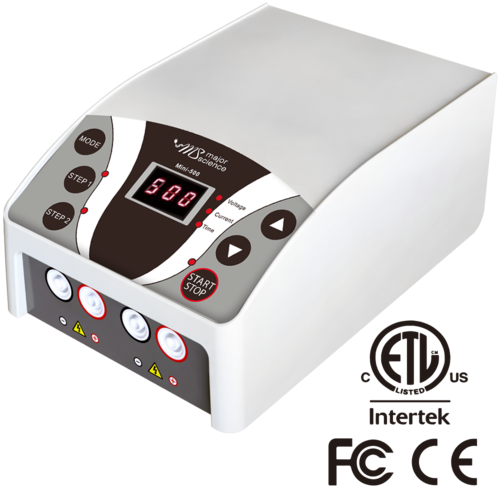

Mini Pro 500V Power Supply, 10-500V/1V, current: 10-400mA/unit

SKU
MS/MINI-500
Brand
MAJOR SCIENCE
Pre-order (Deliver in 8 to 12 weeks)
  • Constant voltage or constant current operation
  • 1V increment voltage control; 1mA increment current control
  • Max 500V, 400mA and 120W for Mini Pro 500V
  • Two pairs of outlet terminals
  • Timer with alarm function
  • Safety device
  • Compact size and lightweight
  • Competitive pricing choice
  • Packages with midi sized horizontal electrophoresis systems and vertical electrophoresis systems
  • 2-step programmable control
Login For Price

Featuring in small size and versatility, the newly designed Mini Pro 500V Power Supply is ideal choices for any researchers. Capable of providing constant voltage or current in 1V or 1mA increment, the unit is perfectly suitable to run both vertical polyacrylamide or horizontal agarose gel electrophoresis experiments. Continuous or timed operation can be easily set up using the simple and user-friendly interface. Moreover, the upgraded 2 step programmable function is more practical for protein electrophoresis. Mini 500V is feature 2 electrode pairs, allowing 2 gels to be run simultaneously, saving both time and valuable bench space. With an universal voltage rating, Mini Pro 500V is also designed and constructed to the most rigorous safety standards. Package including single or dual horizontal electrophoresis system and mini vertical electrophoresis system are excellent choices for educational or person lab purposes.

Specification

Cat. No. MINI-500
Output Voltage / Inc

Step1: 10 - 500V / 1V

Step2: 10 - 500V / 1V

Output Current / Inc

Step1: 1 - 400mA / 1mA

Step2: 1 - 400mA / 1mA

Max. Watt 120W
Output Type Constant voltage or constant current
Control Microprocessor controller
Terminal Pairs 2 pairs
Timer 999 (min) with alarm/ Continuous (set=0)
Safety Device No load detection; shrouded plugs and sockets
Operation Temperature 4℃-40℃
Dimension Approx. 5.5"x7.5"x3.3" (140 x 191 x 84mm)
Weight Approx. 2.2lb (1 kg)
Rated Voltage 100 - 240 V~, 50-60Hz, 2A
Program 2-STEP Program
Presetting value

STEP1( V: 500V ); STEP2( V: 500V )

STEP1( A: 16mA ); STEP2( A: 24mA )

STEP1( T: 30min ); STEP2( T: 240min )

*if time is set 0, system will keep running until user manually stops.
*If voltage or current is set 0 in step 2, system will not proceed to step 2.

Certification

ETL, CE, FCC
