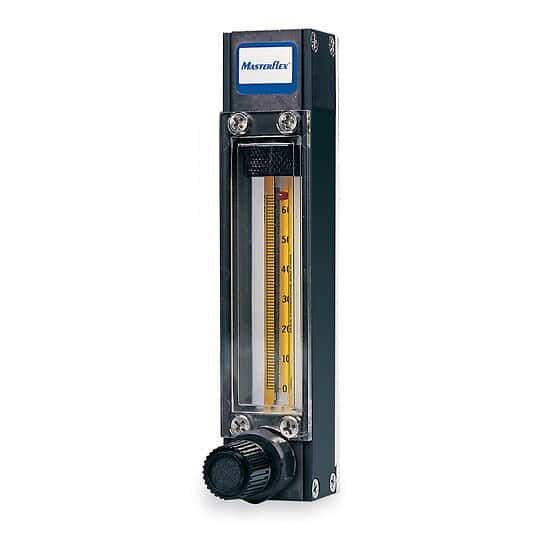

Flowmeter Teflon/Glass
SKU
CP/OO/O/P-03216-52
Brand
MASTERFx
Pre-order (Deliver in 8 to 12 weeks)
Designed for high-purity applications with flexibility for a broad array of gases
- Correlated flowmeters feature a generic scale—reference flow curves calibrated to a variety of media, temperatures and pressures to get the flow rateUse with a variety of media for laboratory and industrial applications
MORE ABOUT THIS ITEM
The substitution of metal fittings with PTFE eliminates a potential contamination source for high-purity applications. The glass tube utilizes a fused ceramic scale for a precise, permanent measuring guide. In addition, a vertical-tangential locator line provides readings with hairline accuracy. Further improving readability is a front shield that magnifies the scale 16%. An anodized aluminum frame protects the heavy-walled glass flowtube; a white acrylic backplate protects and enhances viewing in the protective frame.
Select a flowmeter with a valve for flow rate control. The standard valve is suitable where high resolution metering is not essential. The high precision valve features a fine-adjust 16-turn “non-rising stem†to more accurately set your desired flow rate.
All flowmeters come with correlation data sheets for water and numerous gases (listed below) at standard temperature and pressure (STP).
Specifications & Description
- Accuracy±2% full-scale
- Repeatability±0.25% full-scale
- Material Flow TubeBorosilicate glass
- Material FittingPTFE and Kel-F
- Material ValvePTFE and Kel-F
- Material O-RingPTFE
- Max Operating Temperature (
° F
)150 - Max Operating Temperature (
° C
)65 - Process Connection (NPT(F))0
- Description65 mm Correlated PTFE Flowmeter, Valved, Glass, 032-15
| Brand | MASTERFx |
|---|
