Electrode pH Submersible W/ATC
SKU
CP/P-05993-81
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)
MORE ABOUT THIS ITEM

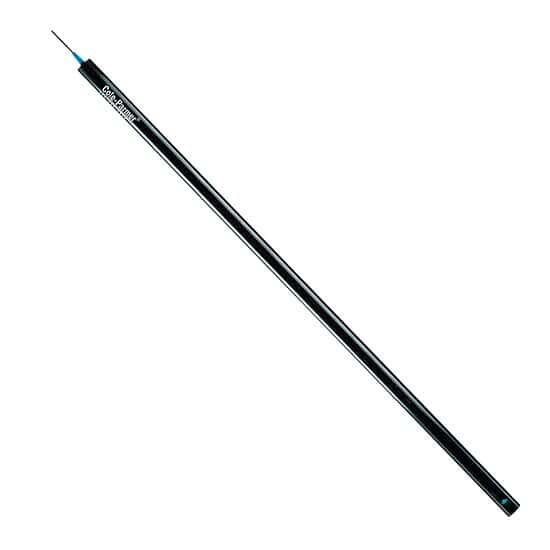

Submersible electrodes operate from 32 to 176°>F (0 to 80°>C). Submerse up to the cable. Measure pH from 0 to 13. Electrodes are potted in a 3 ft L x 1-1/16'' diameter ABS sheath. Ideal for meassurements in open containers such as tanks or troughs.
Note: 100O RTD ATC elements are platinum and conform to DIN curve 43760. ATC connector is miniature audio plug.
Connector for the 1 kO RTD and the 3 kO Balco ATC elements is a spade lug.
Connector for 100 kO thermistor ATC elemen
Specifications & Description
- Applications: Submersible
- Electrode Type: Single junction
- Electrode Body Material: ABS plastic
- Min pH (pH): 13
- Max Temperature (
° C
): 80 - Temperature Compensation: Yes
- ATC Connector: Mini-audio plug
- ATC Element: 100 O Pt RTD
- Connector: BNC
- Diameter (mm): 27
- Length (mm): 914.4
- Length (in): 36
- Cable Length (m): 3
- Description: Submersible 3' L pH Probe, SJ/ABS/100Ohm RTD; Plug/BNC
| Brand | COLE-PARMER |
|---|
