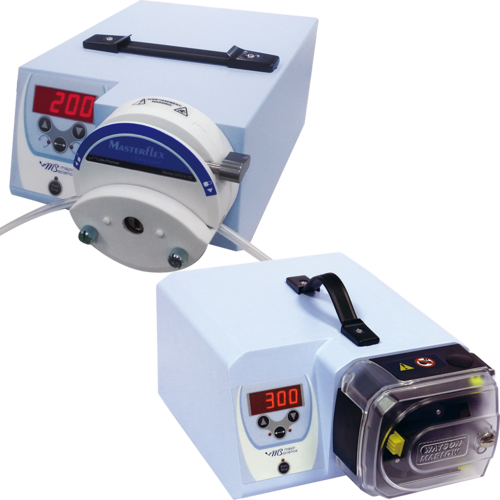

Digital Peristaltic Pump, 110/220V, brushless motor

SKU
MS/MU-D01
Brand
MAJOR SCIENCE
Pre-order (Deliver in 8 to 12 weeks)
  • Digital microprocessor control for precise speed control
  • Compact size provides high portability
  • High quality Masterflex and Watson Marlow easy load pump head
  • Reversible for purging purposes
  • Flow rate range from 1.2 to 1,140ml/min for MU-D01
  • Flow rate range from 0.3 to 2,280ml/min for MU-D02
  • Flow rate range from 8 to 3,272ml/min for MU-D03
  • 2-step programmable operation mode available



Login For Price

MU-D Peristaltic Pump series is ideal for a variety of applications, which include filtration, circulation, sampling, chemical spraying, dispensing, transferring, feeding and filling. The easy-to-use pump head design accomadate several different silicon tubing sizes. This provides a great flexibility for a wide range of flow rates to be utilized when connecting with different sizes of tubings.

The MU-D series is also reversible providing better convenience and flexibility to the user. The digital control provides high accurate rpm performance.

MU-D01 pump is a digital controlled mode with a solid 50W brushless motor, and MU-D02 is designed with a higher horsepower, 100W for higher volume demands required.

MU-D03 pump is the most powerful pump in this series which packs with powerful pump head, allows the flow rate to up to 3,272ml/min with thicker tubing (1.6mm). Select the appropriate model for your lab with economical yet powerful enough peristaltic pump.

Specification

Cat. No. MU-D01
Controller Digital microprocessor controller
Motor 50W
Pump Speed / Increment 20 - 300rpm / 1rpm
Max. Pump Speed 300rpm
Flow Range** 1.2 - 1,140ml/min
Number Of Rollers 4
Number Of Peristaltic Pumps 1 (Max is 2, the second pump head is optional and need the confirm before order.)
Operating Temperature Ambient to 40 °C
Dimension (WxLxH) Approx. 7.9”x13.4”x5.1”
(200x340x130mm)
Material Painted iron metal
Weight Approx. 12.5lb ( 5.7kg )
Rated Voltage

110V/220V, Selectable

Program

2-step Program (running & ceasing); Max. of timer: 99 (hr) : 59 (min) : 59 (sec)

Auto Resume Function

Yes
