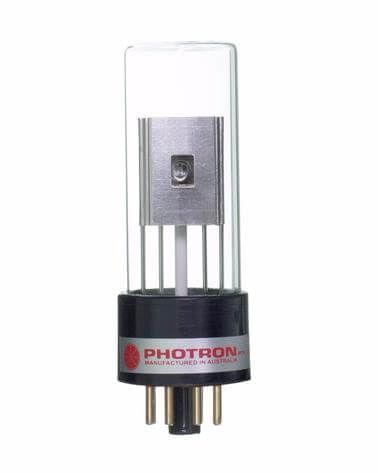

Deuterium Arc Lamp - 10V
SKU
PH/OT/SV/P702
Brand
PHOTRON
Pre-order (Deliver in 8 to 12 weeks)
Instrument
GBC ScientificElectrical
| Filament / Heater Voltage | Start | 10 VDC |
|---|---|---|
| Operating | 5 - 7 VDC | |
| Filament / Heater Current | 1.5A Max | |
| Discharge / Arc Voltage | Strike | @25°C >350 VDC |
| Operating | 60 - 90 VDC | |
| Discharge / Arc Current | 10 -300mA | |
| Terminals | Octal connector |
Optical
| Window material | UV Transmitting Borosilicate |
|---|---|
| Source aperture | Ø 1mm Diameter |
| Wavelength range | 185nm - 400nm |
| Noise | <1 x 10-4 Absorption units |
| Drift | < 3 x 10-3 Absorption units |
Operational Life
When radiant energy reaches 50% of the initial energy at 300mA(dc)| Brand | PHOTRON |
|---|
