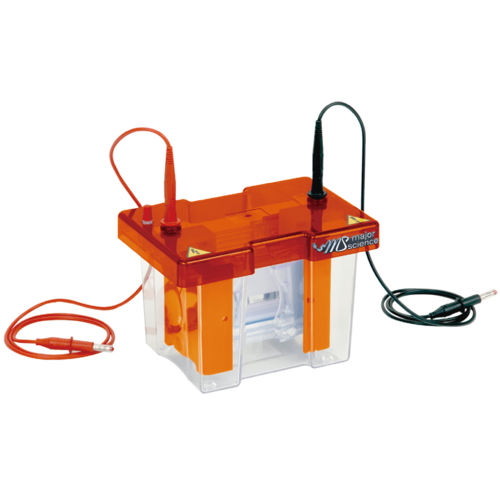

Complete Mini Vertical Gel Electrophoresis Apparatus, gel dimension: W85xL80mm
- Low buffer consumption
- Single molded tank
- Up to 4 gels run at one time
- Great indications for gel making and running
- Ice cooling pack
- Easy gel casting and no gel leakage
- Competitive pricing
- Compatible with all precast gels (100x100mm or 100x80mm)
Mini Vertical is an injection molded vertical elctrophoresis system providing a leak-proof environment and safe operation. Its vertical tank is designed for blotting compatibly. The dual 100x100mm plate is the most popular application and it is capable of handling up to 4 plates. In addition, packages with Mini 300V Power supply is ideally offered to individuals in the labratory at a competitive and acceptable pricing to avoid time wating for basic instruments and to accelerate experimental progress. Simple rapid and leak-proof gel casting.
Specification
| Cat. No. | MV-10DSYS |
| Dimension (WxLxH) | Approx. 7.5"x5.1"x5.9" (190x130x150mm) |
| Plate Dimension (WxL) | Approx. 3.9" 3.9" (100x100mm) |
| Gel Dimension (WxL) | Approx. 3.4"x3.2" (85x80mm) |
| Maximum Sample |
80 samples, 20 samples per gel |
| Buffer Volume | 0.07gal -0.32gal (250 -1200ml) |
| Ice Cooling Pack | Yes |
| Dummy Plate And Casting Base | Yes |
| Construction |
Injection molded construction Durable, leak proof environment for complete safety and long life |
| Electrical Safety |
Lid can be fastened in only one way Upon lid removal, power is disconnected from buffer chamber |
| Material | Use gel maker stand |
| Rapid Casting Gel | Approx. 16.5lb (7.5kg) |
| Brand | MAJOR SCIENCE |
|---|
