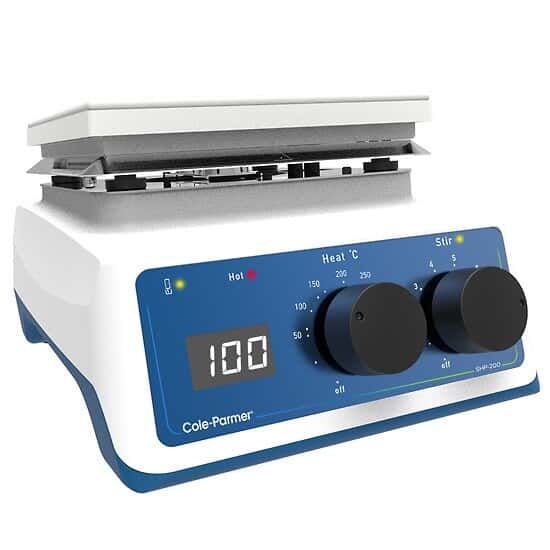

Cole-Parmer SHP-200D-C Stuart Undergrad Digital Stirring Hot Plate, 15 x 15 cm, Ceramic; 230V (Stuart UC152D); Includes 25mm PTFE stirrer bar

SKU
CP/P-04807-62
Brand
COLE-PARMER
In stock

Key Features

  • Compact, stackable design takes up less benchtop and storage space
  • Hot warning light remains on even when unplugged
  • Built with tough aluminum casing for longevity
  • Designed to prevent accidental spillage on control panel
  • IP32 rated for water and dust resistance
  • BioCote® antimicrobial protection is built in for a cleaner, more hygienic product
  • Use optional temperature controller for precise sample temperature control
  • 3 year warranty
  • New, improved version of UC152D
Login For Price

Designed with microprocessor-controlled dual thermocouples, these stirring hot plates offer you accurate temperature control and protection from overheating. Actual surface temperature is displayed in real time on an easy-to-read digital screen. Powerful magnets and motor provide you with stirring speeds of up to 2000 rpm and mixing capability of up to 15 L of liquid. The square plate design allows you flexibility of vessel sizes and combinations.

To keep you safe, a “hot” warning light flashes whenever the plate surface temperature is above 50 °C and continues to flash until the temperature drops below 50 °C, even when unplugged.

These stirring hot plates feature BioCote® antimicrobial protection which reduces the presence of odor and stain causing microbes such as bacteria, mold, and fungi on the product surface by up to 99.99%.

All models include an integral fitting for a retort rod and allow the retort base to slide underneath. For convenience and power saving, the units are built with a standard mains switch. To achieve accurate sample temperature control up to 200 °C (392 °F), a temperature controller (sold separately) can be connected to the unit.



Top Plate Length (in) 6
Top Plate Width (in) 6
Top Plate Length (cm) 15
Top Plate Width (cm) 15
Top Plate Material Glass ceramic
Max Temperature (° F) 842
Max Temperature (° C) 450
Low Speed (rpm) 100
High Speed (rpm) 2000
Length (in) 7
Width (in) 10
Height (in) 4 51/64
Length (cm) 25.5
Width (cm) 18
Height (cm) 12.2
Power (VAC) 230
Power (Hz) 50
Power (watts) 550
Description Undergrad Digital Stirring Hot Plate, 15 x 15 cm, Ceramic; 230V
Warranty 3 Years



More Information
Brand COLE-PARMER
